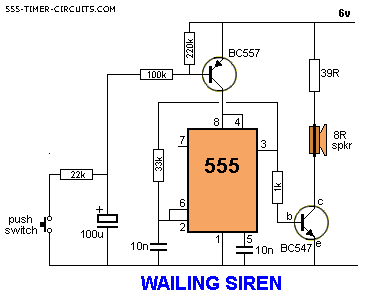

WAILING SIREN Circuit

By pressing the button, the wailing sound increases. Releasing the button decreases the wailing.

The circuit automatically turns off after about 30 seconds.
